Water Storage Tanks

Aline Water Storage tanks are a complete water storage solution for any environment or remote location. A range of square and round steel storage tanks are offered to accommodate your practical needs. Both varieties feature bolt reinforcement and are designed to hold large capacities of water for heavy-duty building services, agricultural and industrial uses. Common applications include:

  • Fire Water Storage
  • Domestic potable water storage for large buildings
  • Rain water reuse
  • Rural water reserves for farms
  • Treated water for commercial interests
  • Waste storage for industrial plants
Aline Logo - Pumping with Innovation 2

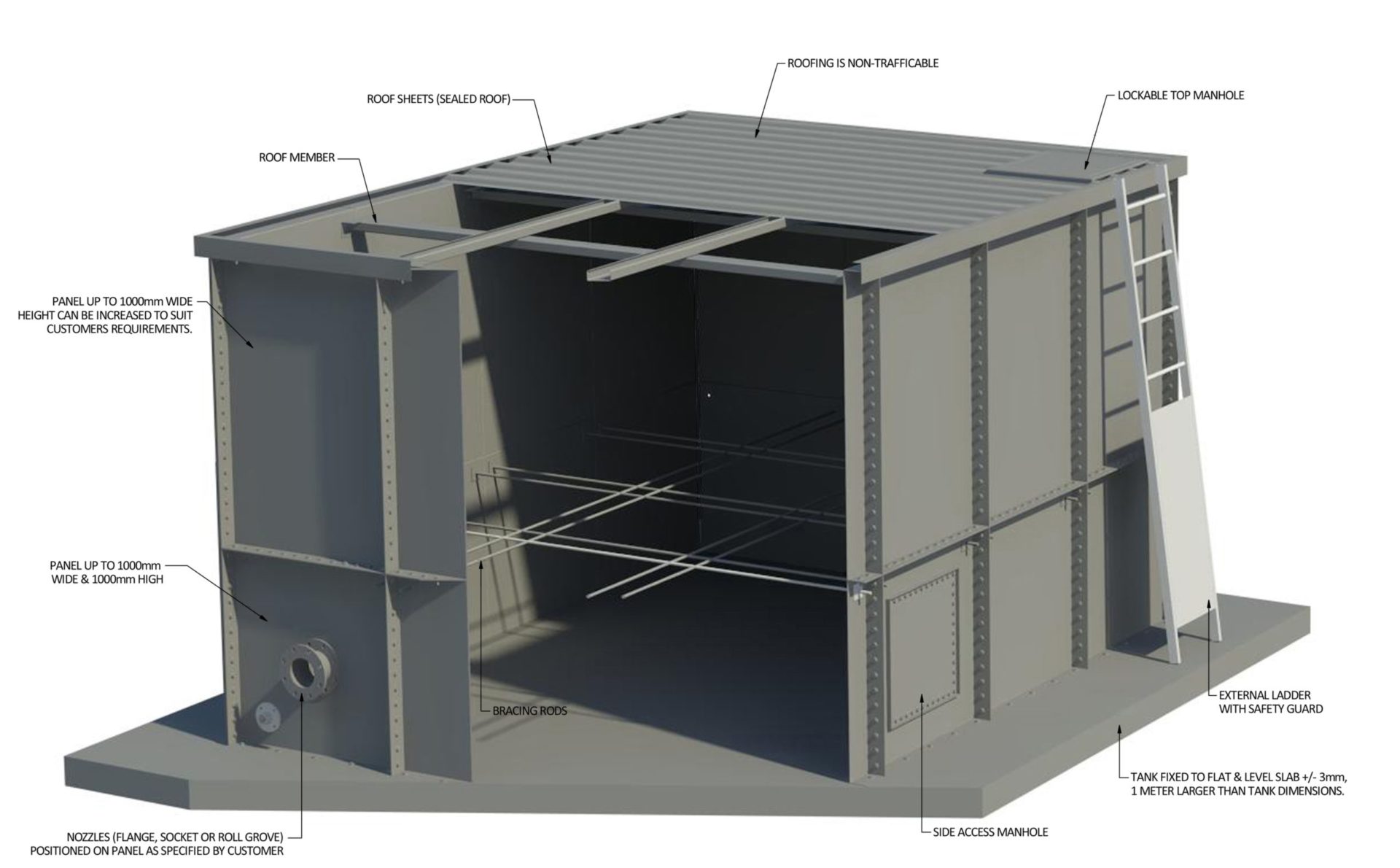

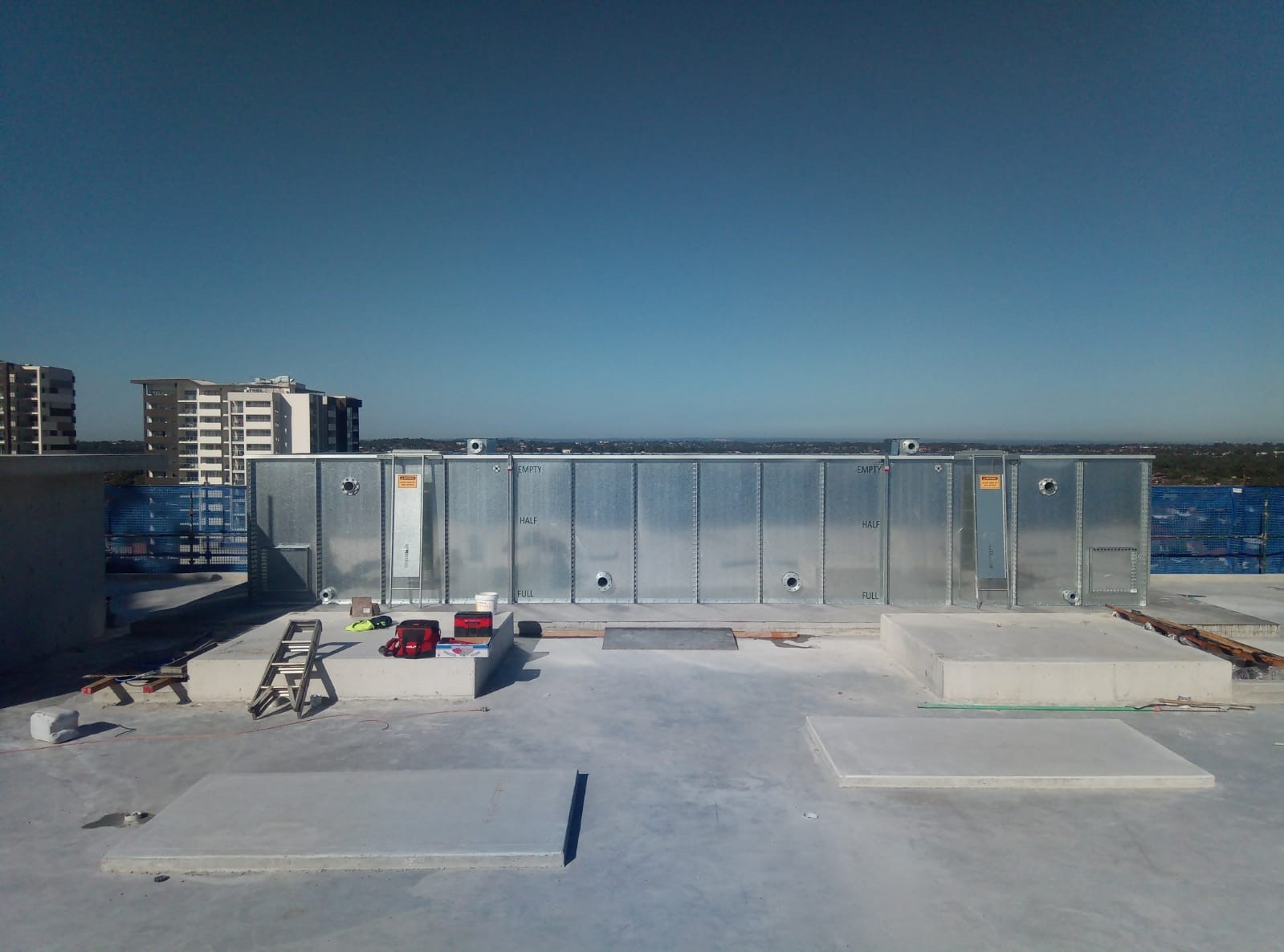

Square

Features & Benefits

The modular construction and bolted design of the Aline Group square tank lends itself to speedy production and reduced lead times. The panels nest within themselves and the system is perfect for delivery to remote hard reach locations such as tight plant rooms, basements or even carried to the top of a building.

  • Materials
    • Galvanised steel
    • Stainless steel 304 2B & 316 2B
    • Powder coated Galvanised Steel (standard Dulux range)
  • Outlet
    • Galvanised steel SS304 or SS316 Nozzles
    • Standard nozzles (flanged, screwed, roll groove) 15mm – 250mm
    • Non-standard fittings available
  • Fittings
    • Roof and side manways & external ladder
    • Inlet, outlet, overflow and drain
  • Roofing
    • Trimclad Zincalume/Colorbond sheets
    • Galvanised Solid (up to 3.0m)
    • SS304/SS316 Solid (up to 3.0m)

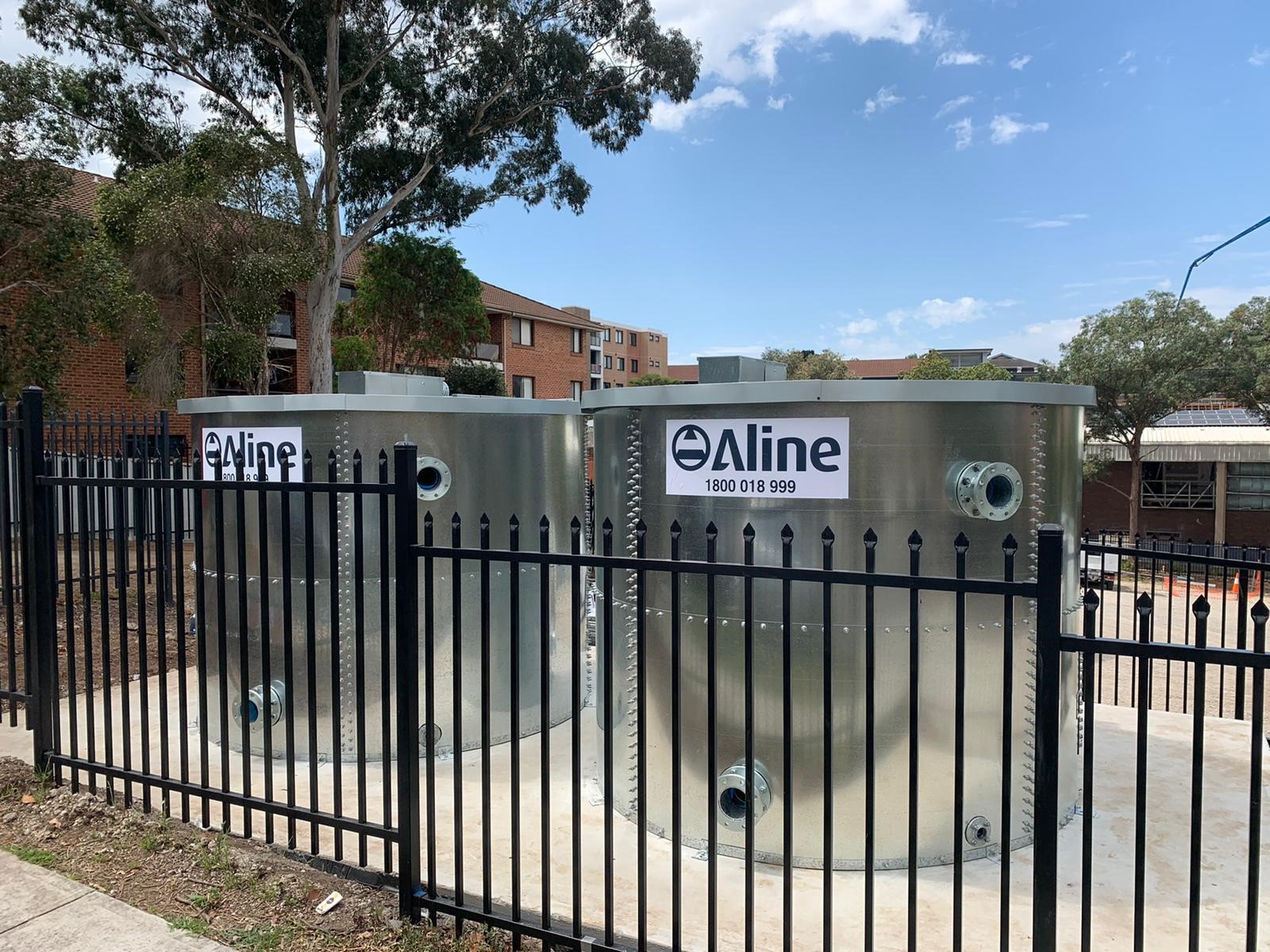

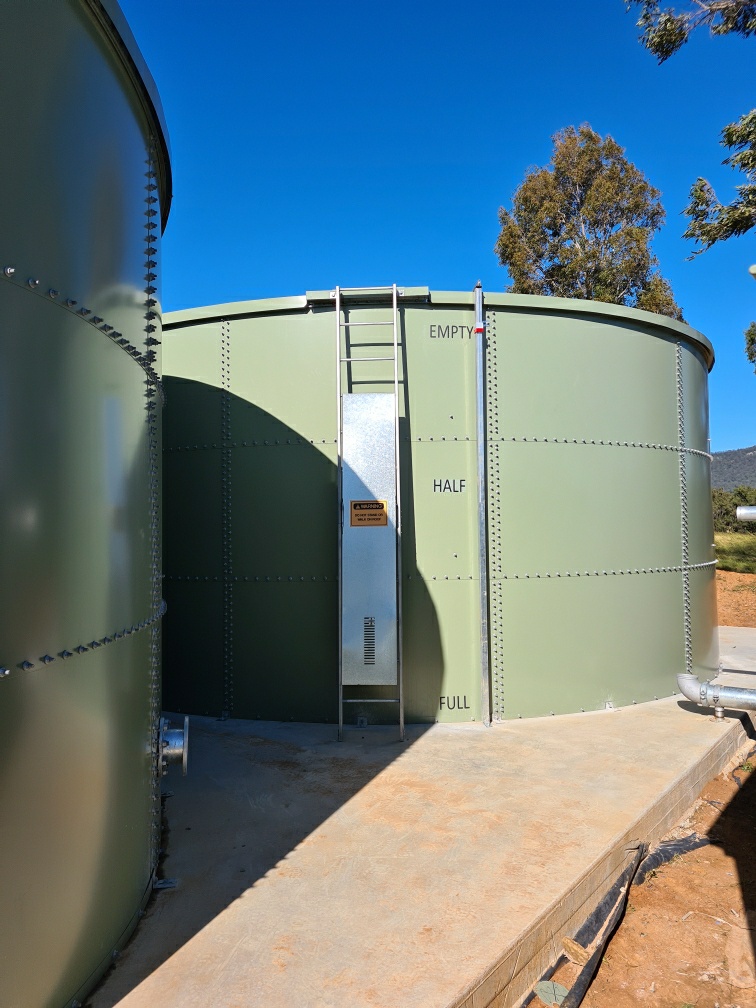

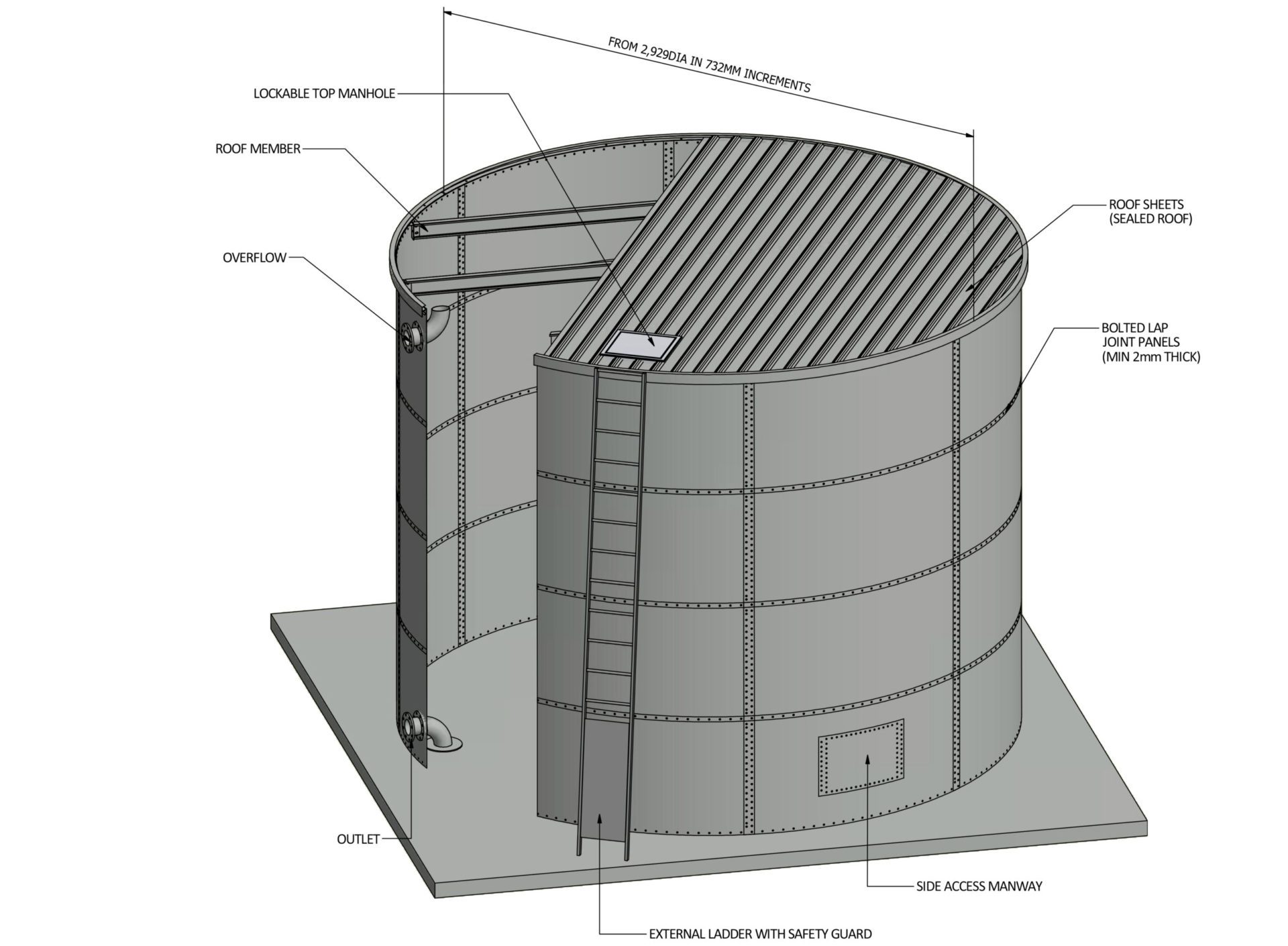

Round

Features & Benefits

Aline’s Round tanks are a contemporary lap-jointed design with no internal ledges for fluid retention. Their ease of transportation and assembly makes them popular for a broad range of applications. These tanks are widely used for a range of applications including community water storage, rain water, farm and rural water, fire water and industrial applications such as de-mineralised water, waste water and treated water.

  • Materials
    • Galvanised steel
    • Stainless steel 304 2B & 316 2B
    • Powder coated Galvanised Steel (standard Dulux range)
  • Outlet
    • Galvanised steel SS304 or SS316 Nozzles
    • Standard nozzles (flanged, screwed, roll groove) 15mm – 250mm
    • Non-standard fittings available
  • Fittings
    • Roof and side manways & external ladder
    • Inlet, outlet, overflow and drain
  • Roofing
    • Flat or 5 degree pitch
    • Trimclad Zincalume/Colorbond sheets
