Grease Arrestors

Suitable for above ground & below ground installations and designed to remove fats, oils, grease & suspended solids, Aline Grease Arrestors are a proven and certified range of grease-trap.

Suitable for cafés, restaurants, canteens, hospitals, bars and hotels, the range includes sizes from 1000L all the way to 5000L, with further custom fibreglass sizes available.

  • Below ground and Above ground versions available
  • Comparatively light weight – requires light duty crane only
  • Available with Class B and Class D lids
  • Where gravity to sewer is not available, a separate pumpstation can be added

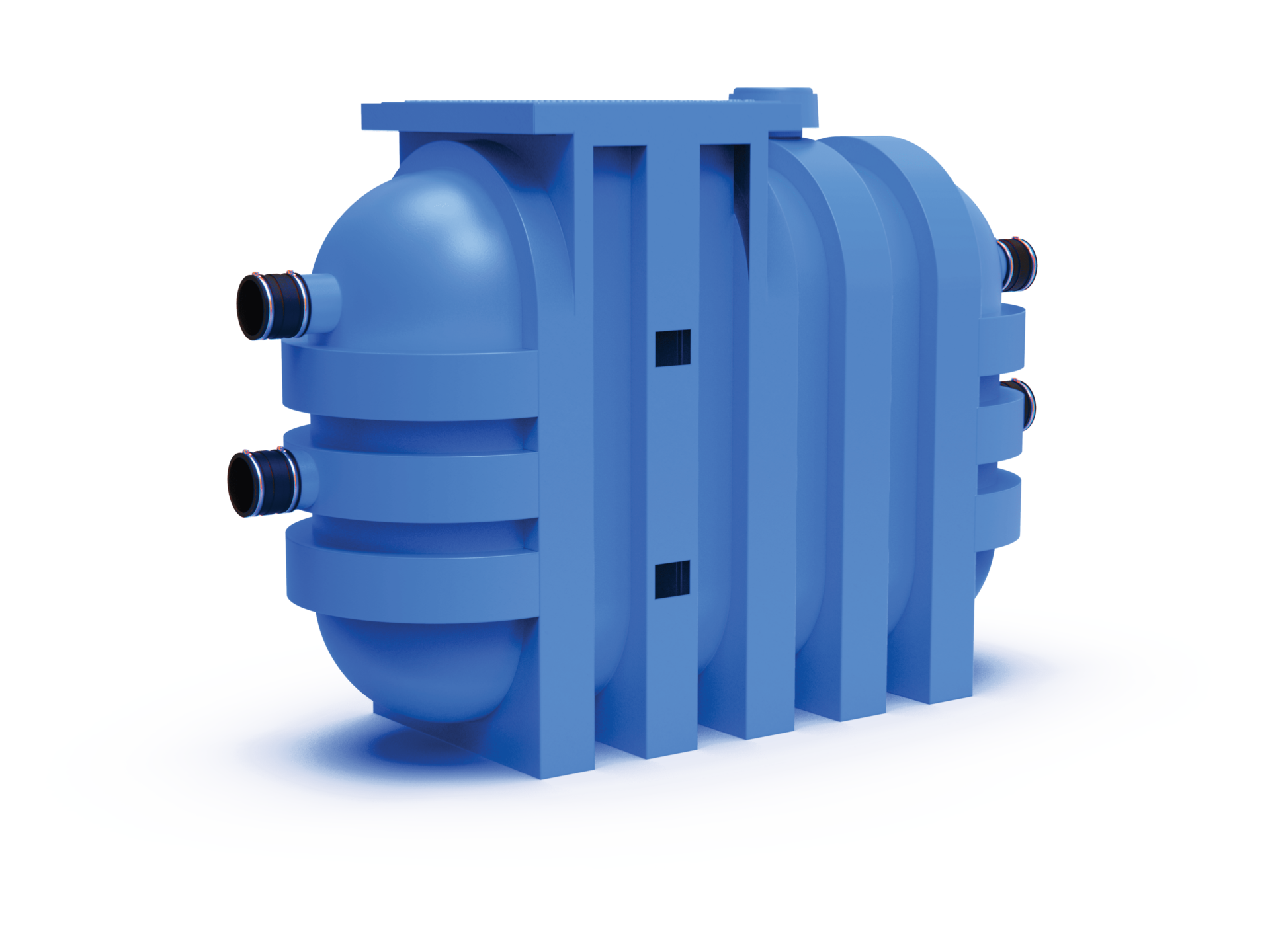

Kwikflo

1000L

Features & Benefits

CONSTRUCTION

  • Polyethylene tank
  • Inlet plumbing to be installed by plumber
  • Risers available on request

LIQUID HANDLED

  • Raw sewage, Trade waste, Effluent & Stormwater

APPLICATIONS

  • Cafés
  • Restaurants
  • Canteens
  • Hospitals
  • Bars and Hotels

1000L

Specifications

Volume
1000L
Length
2060mm
Width
710mm
Depth
1485mm
Manhole
600mm Square
Material
Polyethylene (Poly)
Installation
Above & Below Ground

1500L

Features & Benefits

CONSTRUCTION

  • Polyethylene tank
  • Inlet plumbing to be installed by plumber
  • Risers available on request

LIQUID HANDLED

  • Raw sewage, Trade waste, Effluent & Stormwater

APPLICATIONS

  • Cafés
  • Restaurants
  • Canteens
  • Hospitals

Bars and Hotels

1500L

Specifications

Volume
1500L
Length
2925mm
Width
710mm
Depth
1485mm
Manhole
600mm Square
Material
Polyethylene (Poly)
Installation
Above & Below Ground

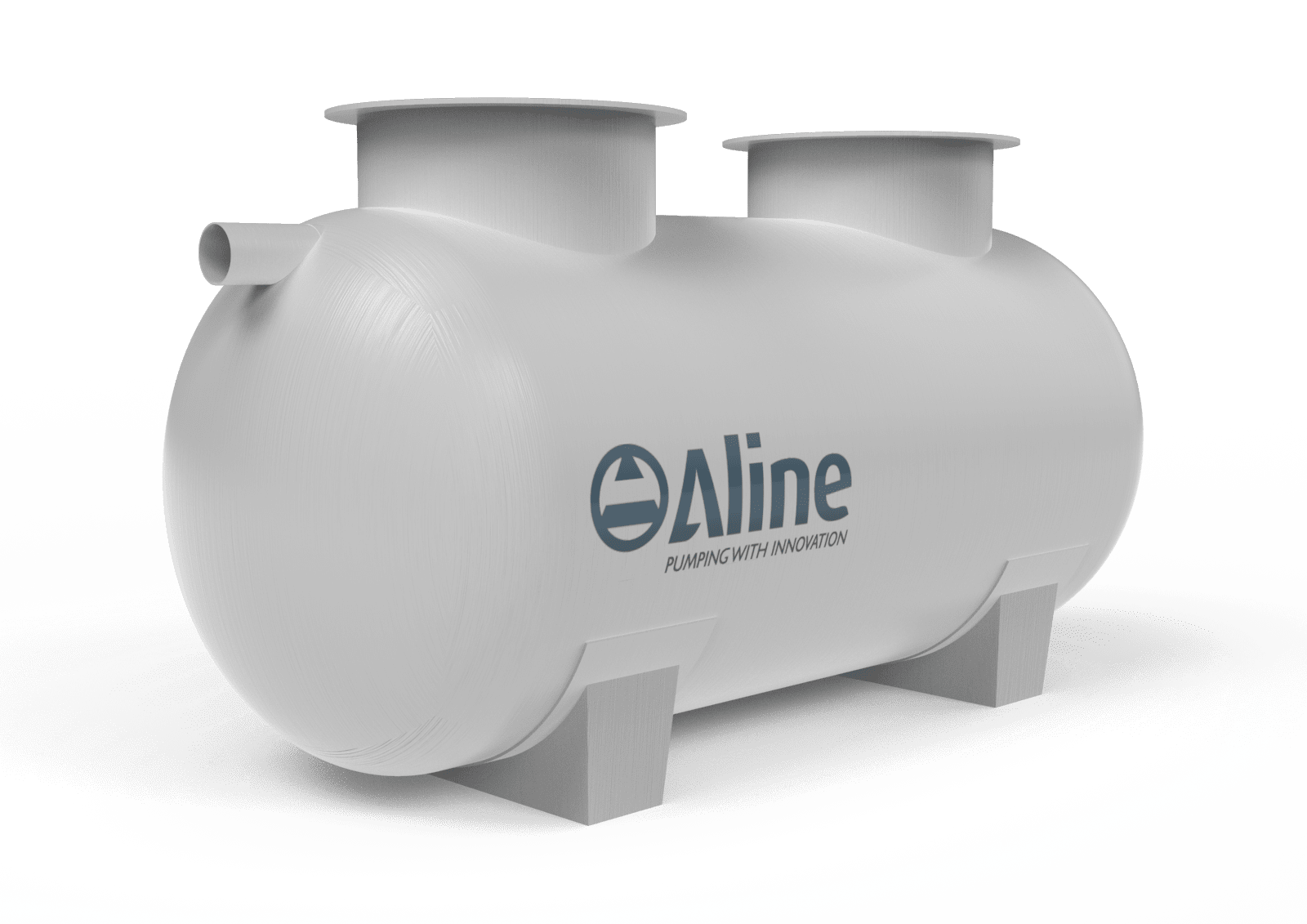

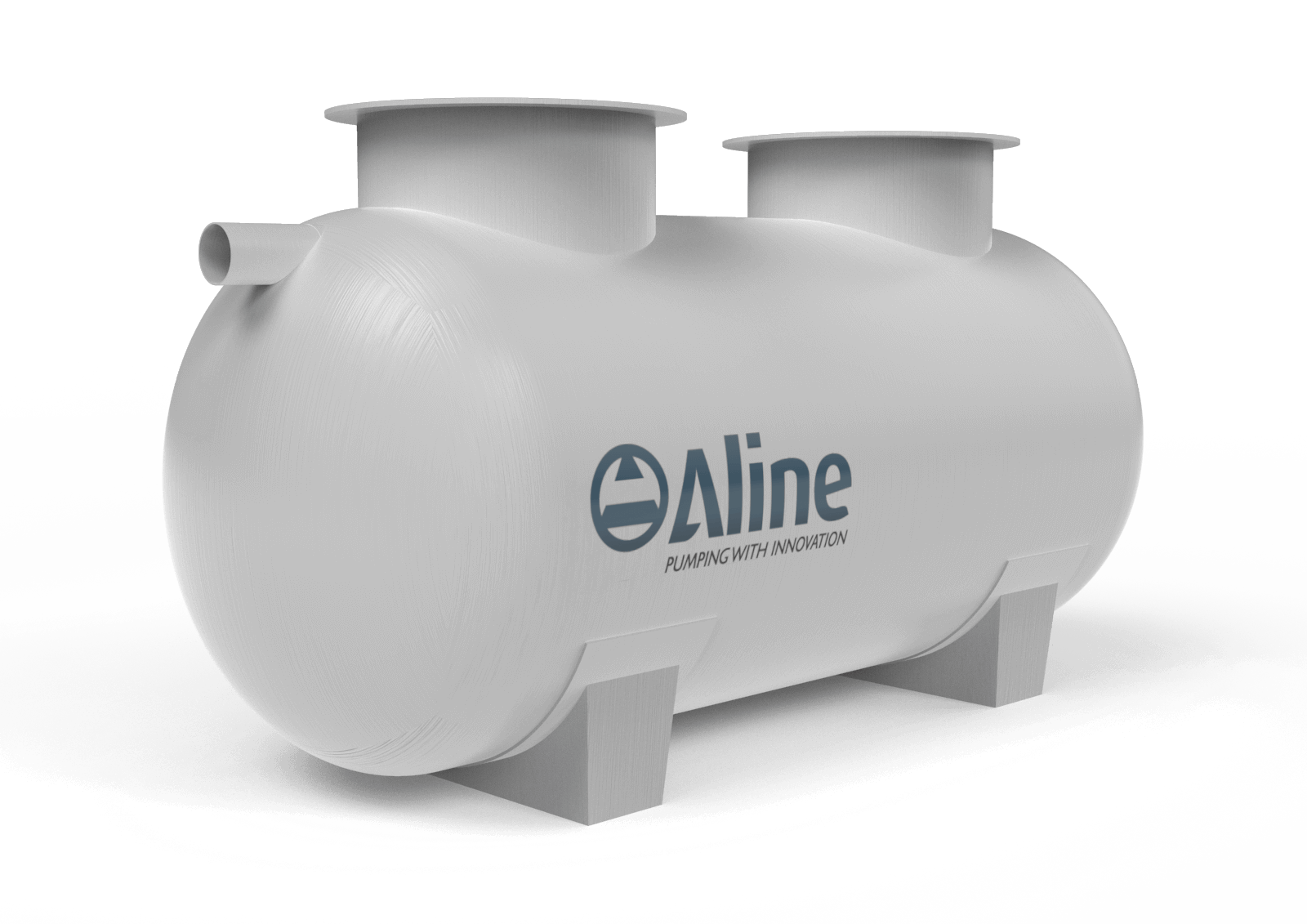

2000L

Features & Benefits

CONSTRUCTION

  • FRP tank
  • Inlet plumbing to be installed by plumber
  • Risers available on request

LIQUID HANDLED

  • Raw sewage, Trade waste, Effluent & Stormwater

APPLICATIONS

  • Cafés
  • Restaurants
  • Canteens
  • Hospitals
  • Bars and Hotels

2000L

Specifications

Volume
2000L
Length
2600mm
Width
1110mm
Depth
1390mm
Manhole
2 x 600mm Round
Material
Fibre-reinforced Polymer (FRP)
Installation
Above & Below Ground

3000L

Features & Benefits

CONSTRUCTION

  • FRP tank
  • Inlet plumbing to be installed by plumber
  • Risers available on request

LIQUID HANDLED

  • Raw sewage, Trade waste, Effluent & Stormwater

APPLICATIONS

  • Cafés
  • Restaurants
  • Canteens
  • Hospitals
  • Bars and Hotels

3000L

Specifications

Volume
3000L
Length
3300mm
Width
1110mm
Depth
1480mm
Manhole
2 x 600mm Round
Material
Fibre-reinforced Polymer (FRP)
Installation
Above & Below Ground

4000L

Features & Benefits

CONSTRUCTION

  • FRP tank
  • Inlet plumbing to be installed by plumber
  • Risers available on request

LIQUID HANDLED

  • Raw sewage, Trade waste, Effluent & Stormwater

APPLICATIONS

  • Cafés
  • Restaurants
  • Canteens
  • Hospitals
  • Bars and Hotels

4000L

Specifications

Volume
4000L
Length
2700mm
Width
1520mm
Depth
1800mm
Manhole
2 x 600mm Round
Material
Fibre-reinforced Polymer (FRP)
Installation
Above & Below Ground

5000L

Features & Benefits

CONSTRUCTION

  • FRP tank
  • Inlet plumbing to be installed by plumber
  • Risers available on request

LIQUID HANDLED

  • Raw sewage, Trade waste, Effluent & Stormwater

APPLICATIONS

  • Cafés
  • Restaurants
  • Canteens
  • Hospitals
  • Bars and Hotels

5000L

Specifications

Volume
5000L
Length
3400mm
Width
1520mm
Depth
1800mm
Manhole
2 x 600mm Round
Material
Fibre-reinforced Polymer (FRP)
Installation
Above & Below Ground
