Access Covers

Aline stocks a full range of Hercules branded Access Covers and Frames to meet all requirements and Australian standards for both Stormwater and Sewer access applications. A full range of Gas tight covers and frames are also available in both; Class B for light duty situations, and D ratings for heavy duty loadings.

Hercules Logo

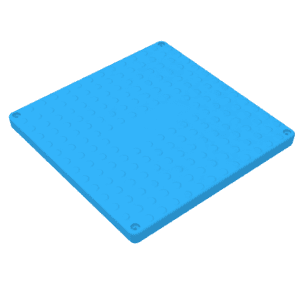

Poly

Specifications

Coming as standard with most common pump stations and grease arrestors, a Polyethylene (Poly) lid is the most affordable access cover option but offers the lowest load rating. It is suitable for non-trafficable or above ground use only.

Supplied fixed to the tank station or grease arrestor with necessary galvanised hardware and gas-tight seal. (also available separately)

Poly

Specifications

Class
N/A
N/A
Size
600x600mm
600x900mm
Height
50mm
50mm
Width
690mm
770mm
Length
690mm
1070mm
Approx. Weight
5kg
10kg
Suited to:
Poly Tanks
250, 900, 1200L
2000, 3000, 5000L
Grease Arrestors
1000, 1500L
N/A

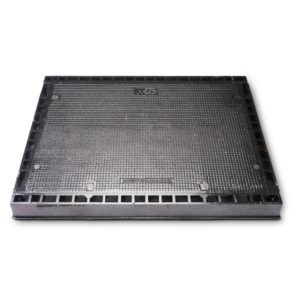

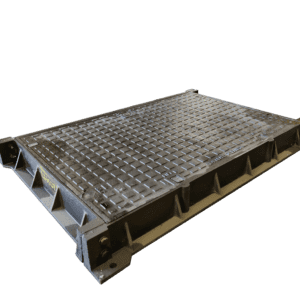

Cast Iron Solid Top

Specifications

For higher load rated applications such as trafficable areas, parking spaces and loading docks, a Cast Iron Solid Top Access Cover is the best option. Hercules branded, Aline’s Class B and D rated access covers are simple to install and extremely durable, and are perfectly suited to our wide range of poly & FRP tanks, Grease Arrestors, and General Purpose Pits.

Supplied fixed to the tank station or grease arrestor with necessary galvanised hardware and gas-tight seal. (also available separately)

Cast Iron Solid Top

Specifications

Class
B
B
D
D
Size
600x600mm
600x900mm
600x600mm
600x900mm
Height
55mm
55mm
105mm
105mm
Width
720mm
720mm
810mm
810mm
Length
750mm
1050mm
820mm
1120mm
Approx. Weight
37kg
52kg
70kg
100kg
Suited to:
Poly Tanks
250, 900, 1200L
2000, 3000, 5000L
250, 900, 1200L
2000, 3000, 5000L
Grease Arrestors
1000, 1500L
N/A
1000, 1500L
N/A

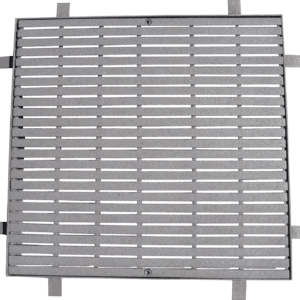

Grated

Specifications

Perfect for drainage applications in trafficable (and non-trafficable) areas, Grated Access covers are a main entry point for stormwater run-off into holding wells or pump stations. Available in many variants including, frame-hinged, heel-proof and standard.

Grated

Specifications

Type
Hinged Grated
Heel-Proof
Height
50mm
50mm
Width
560-720mm
560mm
Length
560-1120mm
560mm
Approx. Weight
25-40kg
20-37kg
Suited to:
Poly Tanks
250, 900, 1200L
R450, 100L
Grease Arrestors
N/A
N/A

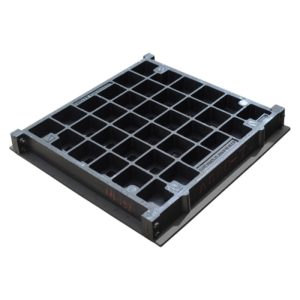

Infill Access Cover

Specifications

Infill Access Covers are best suited for matching into their surrounding area, providing access to a holding well in a public/open area without interrupting the architectural aesthetic. Made of quality cast iron, they feature rows of ‘infill sections’ into which concrete can be inserted. The Brass-edged version incorporates a stylish brass edging for a different aesthetic. Both types are used extensively in urban areas.

Infill

Specifications

Type
Concrete Infill
Brass-Edged Infill
Height
105mm
105mm
Width
720-810mm
720-810mm
Length
750-1120mm
750-1120mm
Approx. Weight
Up to 100kg
Up to 100kg
Suited to:
Poly Tanks
100-5000L
250-5000L
Grease Arrestors
1000, 1500L
1000, 1500L
