Pump Stations

Kwikflo Pumpstations are the industry standard – with an extensive range and with over 30 years’ experience in packaged pump station manufacture, Aline produces a high-quality product on short lead times and can engineer a solution to your exact specification.

The Aline Packaged Pump Station is the quick and reliable solution for any situation where sewage or stormwater needs to be pumped to a mains connection. Each Aline Pump Station is supplied as a complete assembled package, including an access cover, valves and internal pipework. The packages can be configured to suit your exact specification by our team of experienced Sales personnel, including tank size, pump type, guide rail option, and access cover type.

  • Single, Dual or Triplex pump configuration
  • 100-5000L Poly tanks as standard, custom Fibreglass also available to your specified size.
  • 32-100mm Pipework and valving
  • Poly lids and all versions of AS3996 rated Access Covers available
Kwikflo

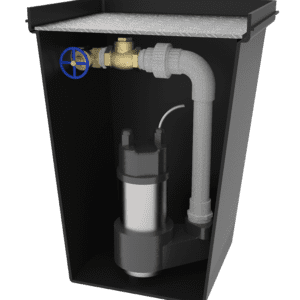

R450 Poly Pumpstation

Features & Benefits

CONSTRUCTION

  • Polyethylene tank
  • Inlet pipe to be installed by plumber
  • All in-tank fittings incorporated in the packaged pump stations as follows:
  • Ball and non-return valves, barrel unions.
  • PVC interconnecting pipework

LIQUID HANDLED

  • Tradewaste & Stormwater

PUMP OPTIONS

  • Single Pump

CONFIGURATION

  • Freestanding

APPLICATIONS

  • Garbage Rooms
  • Granny Flats
  • Small pump-away applications

R450

Specifications

Depth
627mm
Outer Diameter
472mm
Inner Diameter
410mm (opening)
Nominal Litres
100L
Approx. Weight
(Excluding pump)
15kg
Access Cover
450mm x 450mm

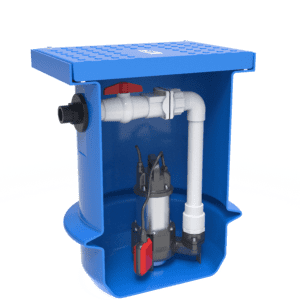

100L Poly Pumpstation

Features & Benefits

CONSTRUCTION

  • Polyethylene tank
  • Inlet pipe to be installed by plumber
  • All in-tank fittings incorporated in the packaged pump stations as follows:
  • Ball and non-return valves, barrel unions.
  • PVC interconnecting pipework

LIQUID HANDLED

  • Raw sewage, Tradewaste, Effluent and Stormwater

PUMP OPTIONS

  • Single Pump

CONFIGURATION

  • Freestanding

APPLICATIONS

  • Garbage Rooms
  • Granny Flats
  • Small pump-away applications
  • Basement pump-away

100L

Specifications

Depth
700mm
Outer Diameter
575mm
Inner Diameter
410mm
Nominal Litres
100L
Aprox. Weight
(Excluding pump)
15kg
Access Cover
450mm x 450mm

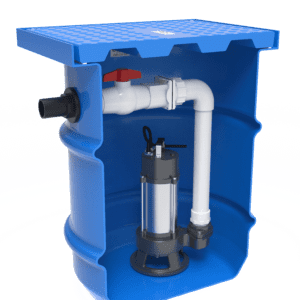

250L Poly Pumpstation

Features & Benefits

CONSTRUCTION

  • Polyethylene tank
  • Inlet pipe to be installed by plumber
  • All in-tank fittings incorporated in the packaged pump stations as follows:
  • Ball and non-return valves, barrel unions.
  • PVC interconnecting pipework

LIQUID HANDLED

  • Raw sewage, Tradewaste, Effluent and Stormwater

PUMP OPTIONS

  • Single Pump

CONFIGURATION

  • Freestanding

APPLICATIONS

  • Garbage Rooms
  • Granny Flats
  • Small pump-away applications

Basement pump-away

250L

Specifications

Depth
880mm
Outer Diameter
720mm
Inner Diameter
605mm
Nominal Litres
250L
Approx. Weight
(Excluding pump)
25kg
Access Cover
600mm x 600mm

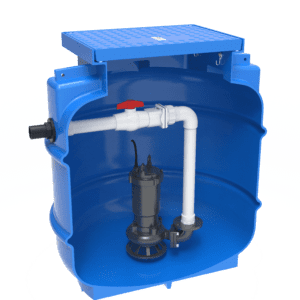

900L Poly Pumpstation

Features & Benefits

CONSTRUCTION

  • Polyethylene tank
  • Inlet pipe to be installed by plumber
  • All in-tank fittings incorporated in the packaged pump stations as follows:
  • Ball and non-return valves, barrel unions.
  • PVC interconnecting pipework

LIQUID HANDLED

  • Raw sewage, Tradewaste, Effluent and Stormwater

PUMP OPTIONS

  • Single, Dual Pumps

CONFIGURATION

  • Freestanding

APPLICATIONS

  • Single Dwellings
  • Houses
  • Pump-away applications

Basement pump-away

900L

Specifications

Depth
1200mm
Outer Diameter
1075mm
Inner Diameter
1000mm
Nominal Litres
900L
Approx. Weight
(Excluding pump)
45kg
Access Cover
600mm x 600mm

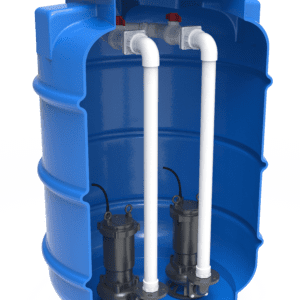

1200L Poly Pumpstation

Features & Benefits

CONSTRUCTION

  • Polyethylene tank
  • Inlet pipe to be installed by plumber
  • All in-tank fittings incorporated in the packaged pump stations as follows:
  • Ball and non-return valves, barrel unions.
  • PVC interconnecting pipework

LIQUID HANDLED

  • Raw sewage, Tradewaste, Effluent and Stormwater

PUMP OPTIONS

  • Single, Dual Pumps

CONFIGURATION

  • Freestanding
  • Guide Rail

APPLICATIONS

  • Single Dwellings
  • Houses
  • Pump-away applications
  • Basement pump-away
  • Civil developments
  • Residential apartments

Industrial complexes

1200L

Specifications

Depth
1600mm
Outer Diameter
1075mm
Inner Diameter
1000mm
Nominal Litres
1200L
Approx. Weight
(Excluding pump)
62kg
Access Cover
600mm x 600mm

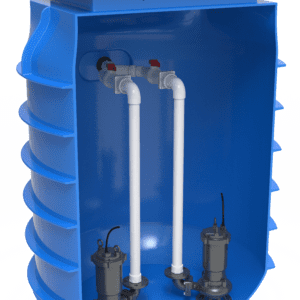

2000L Poly Pumpstation

Features & Benefits

CONSTRUCTION

  • Polyethylene tank
  • Inlet pipe to be installed by plumber
  • All in-tank fittings incorporated in the packaged pump stations as follows:
  • Ball and non-return valves, barrel unions.
  • PVC interconnecting pipework

LIQUID HANDLED

  • Raw sewage, Tradewaste, Effluent and Stormwater

PUMP OPTIONS

  • Single, Dual or Triplex Pumps

CONFIGURATION

  • Freestanding
  • Guide Rails

APPLICATIONS

  • Large Houses
  • Caravan Parks
  • Amenities blocks
  • Shopping centres
  • Basement pump-away
  • Civil developments
  • Residential apartments
  • Industrial complexes

2000L

Specifications

Depth
2010mm
Outer Diameter
1475mm
Inner Diameter
1355mm
Nominal Litres
2000L
Approx. Weight
(Excluding pump)
185kg
Access Cover
600mm x 900mm (R)

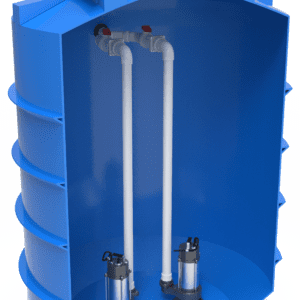

3000L Poly Pumpstation

Features & Benefits

CONSTRUCTION

  • Polyethylene tank
  • Inlet pipe to be installed by plumber
  • All in-tank fittings incorporated in the packaged pump stations as follows:
  • Ball and non-return valves, barrel unions.
  • PVC interconnecting pipework

LIQUID HANDLED

  • Raw sewage, Tradewaste, Effluent and Stormwater

PUMP OPTIONS

  • Single, Dual or Triplex Pumps

CONFIGURATION

  • Freestanding
  • Guide Rails

APPLICATIONS

  • Large Houses
  • Caravan Parks
  • Amenities blocks
  • Shopping centres
  • Basement pump-away
  • Civil developments
  • Residential apartments
  • Industrial complexes

3000L

Specifications

Depth
2220mm
Outer Diameter
1700mm
Inner Diameter
1580mm
Nominal Litres
3000L
Approx. Weight
(Excluding pump)
220kg
Access Cover
600mm x 900mm

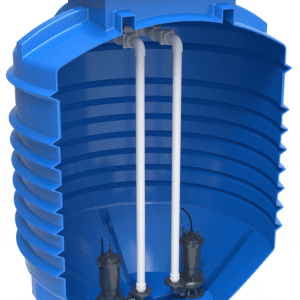

5000L Poly Pumpstation

Features & Benefits

CONSTRUCTION

  • Polyethylene tank
  • Inlet pipe to be installed by plumber
  • All in-tank fittings incorporated in the packaged pump stations as follows:
  • Ball and non-return valves, barrel unions.
  • PVC interconnecting pipework

LIQUID HANDLED

  • Raw sewage, Tradewaste, Effluent and Stormwater

PUMP OPTIONS

  • Single, Dual or Triplex Pumps

CONFIGURATION

  • Freestanding
  • Guide Rails

APPLICATIONS

  • Large Houses
  • Caravan Parks
  • Amenities blocks
  • Shopping centres
  • Basement pump-away
  • Civil developments
  • Residential apartments
  • Industrial complexes

5000L

Specifications

Depth
2450mm
Outer Diameter
1925mm
Inner Diameter
1875mm
Nominal Litres
5000L
Approx. Weight
(Excluding pump)
420kg
Access Cover
600mm x 900mm

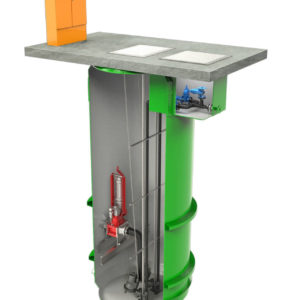

FRP Vertical + VC

CONFIGURATION

Vertical pump station with integrated dry valve chamber (shown with an internal macerator also)

FEATURES & BENEFITS

  • Dry valve chamber eliminates the need to open the tank to turn off valves
  • Valve chamber drained back to main tank
  • Fully engineered one piece construction – no assembly on site
  • Small footprint required – saves space
  • Comparatively light weight – requires light crane
  • Diameters up to 4,000mm (subject to delivery arrangements)
  • Standard depths to 5,000mm, greater on request (subject to delivery arrangements)
  • Inlet can be installed by plumber
  • All penetrations can be cast in as per customer specifications
  • Single, dual or triplex pump configurations
  • Free-standing or guide rail mounted pump systems

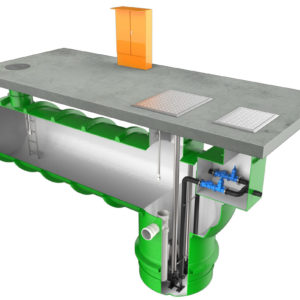

FRP Horizontal

CONFIGURATION

Horizontal pump station with integrated dry valve chamber

FEATURES & BENEFITS

  • Large volume in a shallow excavation
  • With or without the dry valve chamber
  • Fully engineered one piece construction – no assembly on site
  • Small footprint required – saves space
  • Comparatively light weight – requires light crane
  • Diameters up to 4,000mm (subject to delivery arrangements)
  • Standard lengths to 5,000mm, greater on request (subject to delivery arrangements)
  • Inlet can be installed by plumber
  • All penetrations can be cast in as per customer specifications
  • Single, dual or triplex pump configurations
  • Free-standing or guide rail
  • mounted pump systems

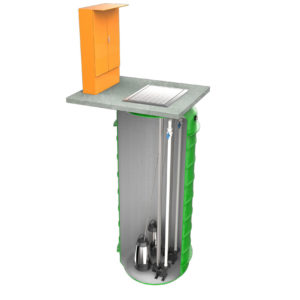

FRP Vertical

CONFIGURATION

Vertical pump station with internal valves

FEATURES & BENEFITS

  • Fully engineered one piece construction – no assembly on site
  • Small footprint required – saves space
  • Comparatively light weight – requires light crane
  • Diameters up to 4,000mm (subject to delivery arrangements)
  • Standard depths to 5,000mm, greater on request (subject to delivery arrangements)
  • Inlet can be installed by plumber
  • All penetrations can be cast in as per customer specifications
  • Single, dual or triplex pump configurations
  • Free-standing or guide rail mounted pump systems

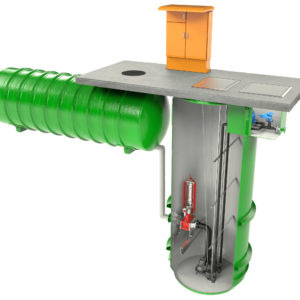

FRP Horizontal + Vertical

CONFIGURATION

Vertical pump station with integrated dry valve chamber, horizontal emergency storage tank (shown with internal macerator also)

FEATURES & BENEFITS

  • Very large volumes of storage available
  • Separate tanks means bigger volumes
  • With or without the dry valve chamber
  • Fully engineered one piece construction – no assembly on site
  • Small footprint required – saves space
  • Comparatively light weight – requires light crane
  • Diameters up to 4,000mm (subject to delivery arrangements)
  • Standard depths to 5,000mm, greater on request (subject to delivery arrangements)
  • Inlet can be installed by plumber
  • All penetrations can be cast in as per customer specifications
  • Single, dual or triplex pump configurations
  • Free-standing or guide rail mounted pump systems
