Undersink Pumpstations
Undersink Pumpstations
The Kwikflo Undersink Packaged Pump Chamber is an automatic system designed to handle sink and basin waste where it is not possible to achieve gravity fall to sewer. It incorporates a small electric submersible pump.
The chamber receives influent liquid from the basin or sink. As the level in the chamber rises, the float switch rises and activates the pump. The pump then discharges the liquid causing the level to fall thus turning the pump off.
Applications:
- Cafes
- Bakeries
- Take aways
- Laboratories
- Laundries
- Basements
- Granny Flats
- Bar / Cellars
- Kitchens
KUSP40

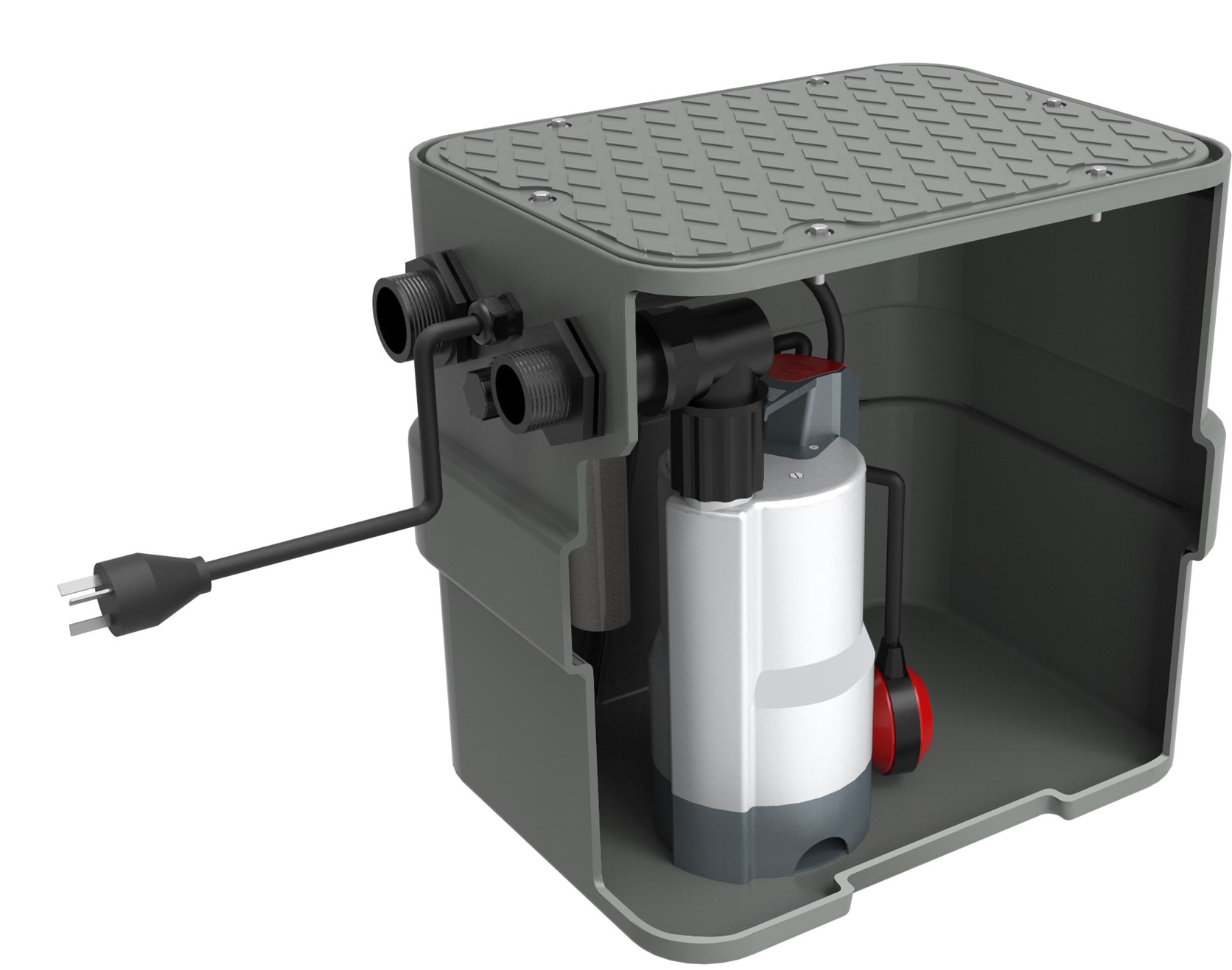

Kwikflo 40 litre polyethylene undersink packaged pump station fitted with a submersible vortex pump, internal pipework and valves. Pump station has a maximum head from all causes of 7 metres and requires venting. Comes with SAR40 Pump installed
CONSTRUCTION
- Polyethylene tank
- All connections at end of tank to be installed by plumber
- All in-tank fittings incorporated in the undersink pump stations as follows:
- PVC ball and non-return valves barrel unions
- PVC interconnecting paperwork
LIQUID HANDLED
Trade waste, Effluent & Stormwater, Sink waste, Grey water
APPLICATIONS
Cafes & Kitchens, Hobby rooms, Dental surgeries, Laboratories
KUSP40
Specifications
Depth | 330mm | ||||
Width | 430mm | ||||
Height | 410mm | ||||
Nominal Litres | 40 | ||||
Approximate Weight | 16kg |
KUS40

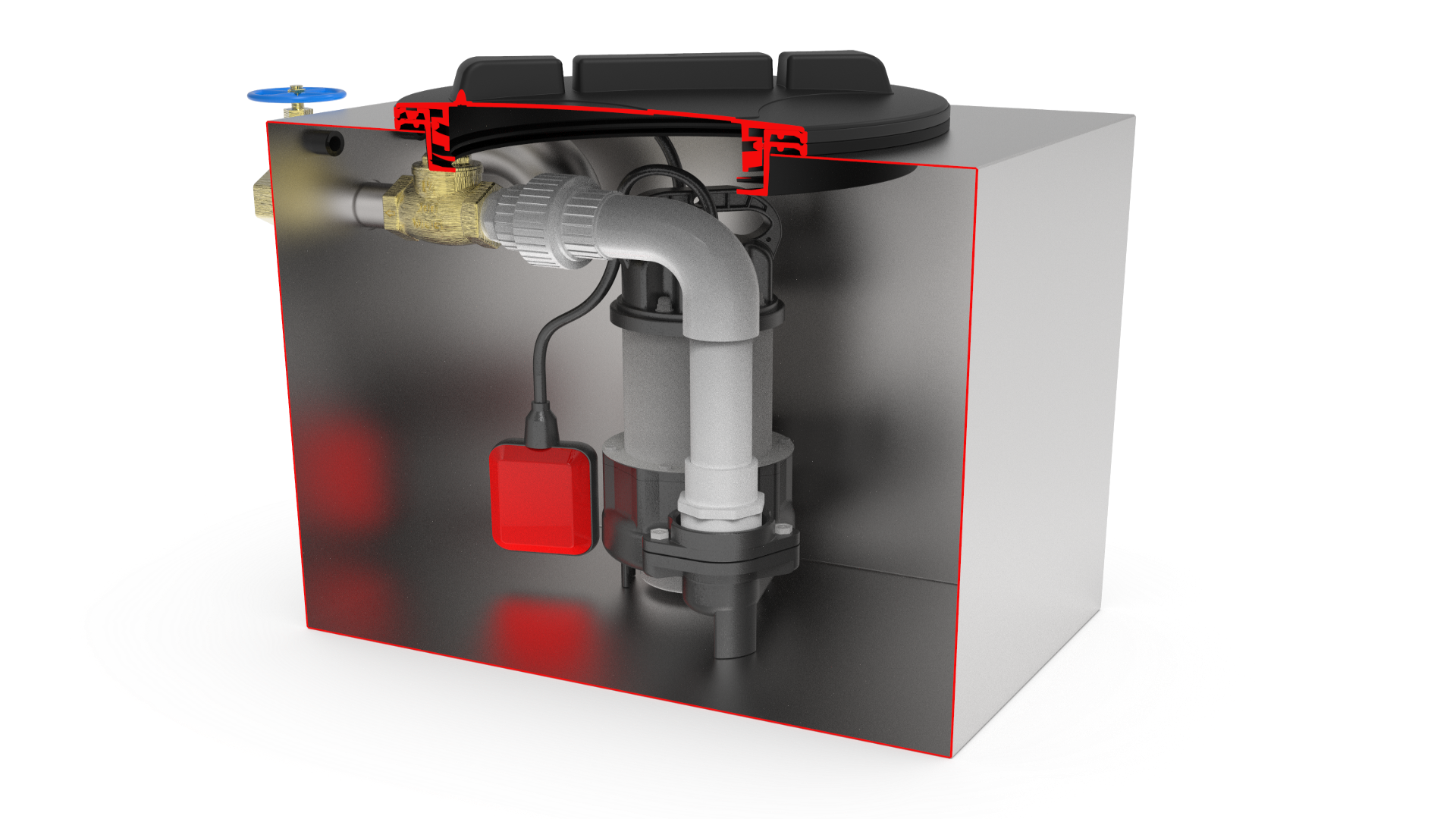

Kwikflo 40 litre stainless steel undersink packaged pump station fitted with a submersible pump, internal pipework and valves. Pump station has a maximum head from all causes of 7 metres and requires venting
CONSTRUCTION
- Stainless steel tank
- All connections at end of tank to be installed by plumber
- All in-tank fittings incorporated in the undersink pump stations as follows:
- PVC ball and non-return valves barrel unions.
LIQUID HANDLED
Trade waste, Effluent & Stormwater, Sink waste, Grey water
APPLICATIONS
Cafes & Kitchens, Hobby rooms, Dental surgeries, Laboratories
KUS40
Specifications
Depth | 330mm | ||||
Width | 430mm | ||||
Height | 410mm | ||||
Nominal Litres | 40 | ||||
Approximate Weight | 27kg |
KUS80

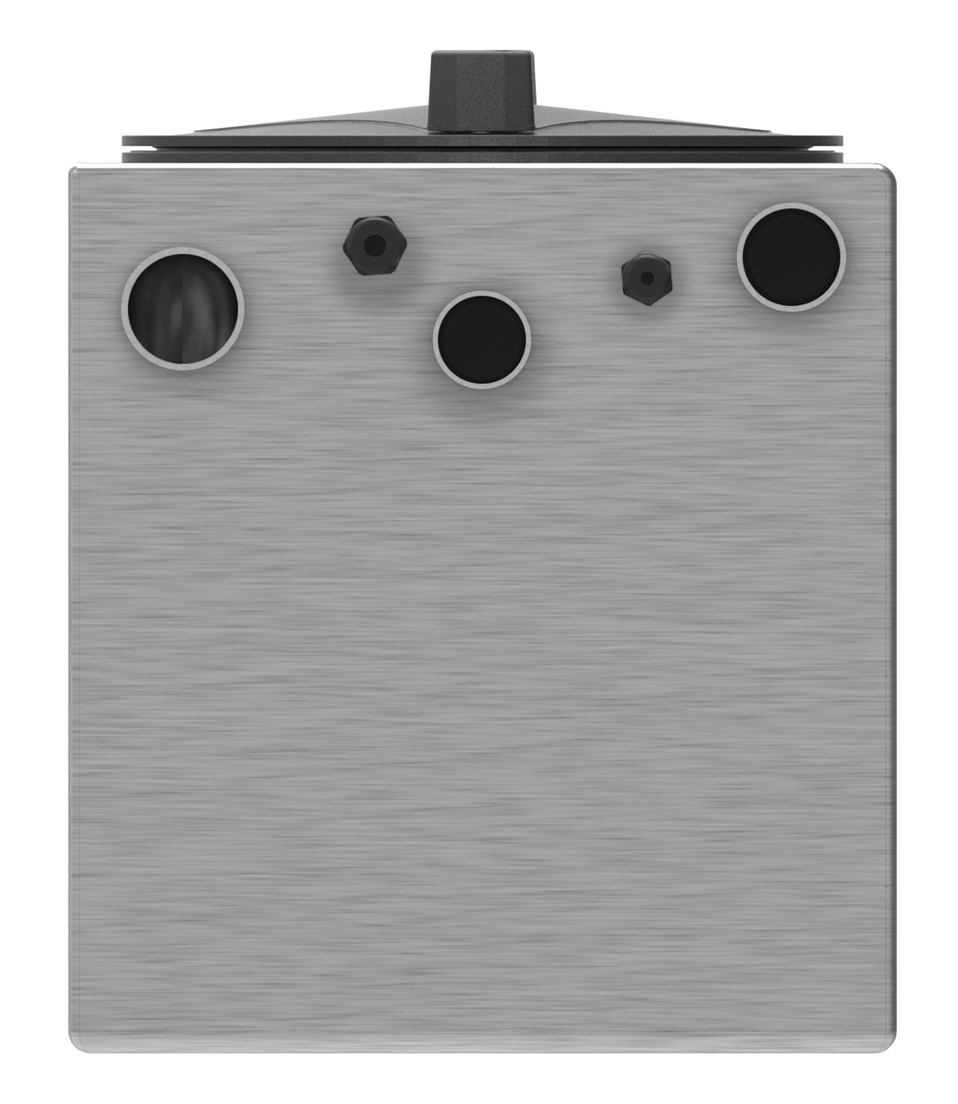

Kwikflo 80 litre stainless steel undersink packaged pump station fitted with a submersible pump, internal pipework and valves. Pump station has a maximum head from all causes of 7 or 11 metres (depending on pump included) and requires venting
CONSTRUCTION
- Stainless steel tank
- All connections at end of tank to be installed by plumber
- All in-tank fittings incorporated in the undersink pump stations as follows:
- PVC ball and non-return valves barrel unions
- PVC interconnecting paperwork
LIQUID HANDLED
Trade waste, Effluent & Stormwater, Sink waste, Grey water
APPLICATIONS
Cafes & Kitchens, Hobby rooms, Dental surgeries, Laboratories
KUS80
Specifications
Depth | 400mm | ||||
Width | 500mm | ||||
Height | 450mm | ||||
Nominal Litres | 80 | ||||
Approximate Weight | 33kg |
